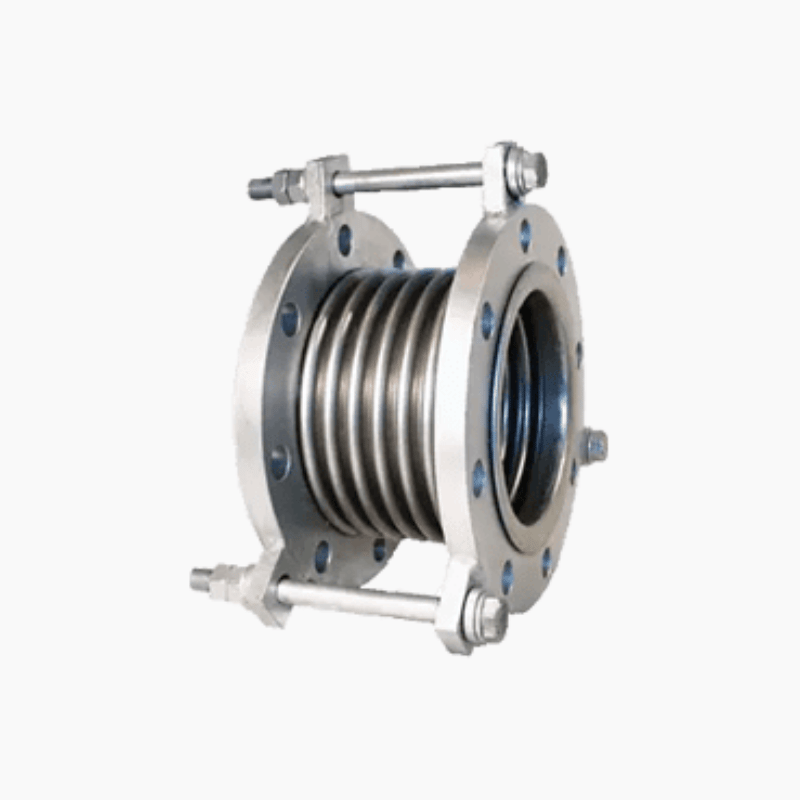

Metallic Expansion Joints

Bellows are flexible piping components designed to absorb thermal expansion and contraction in piping systems caused by temperature fluctuations. The corrugated structure of the bellows provides the flexibility required to accommodate axial, lateral, and angular movements while maintaining system integrity.

The number and geometry of corrugations are carefully determined based on the expected displacement and the expansion or contraction forces that the bellows must absorb. In addition to providing flexibility, bellows must be engineered to withstand the design and operating pressures of the piping system. While bellows absorb thermal movement, the thrust forces generated by internal pressure must be restrained by external anchors, guides, or other support structures rather than by the bellows themselves.

The pressure thrust force of a bellows is typically calculated by multiplying the effective cross-sectional area by the internal pressure of the piping system.

Kanwal Easyflex Bellows are manufactured from cylindrical tubes formed from high-ductility materials. These tubes are precisely shaped into parallel corrugations that accommodate various types of movement without the wear and maintenance issues commonly associated with conventional mechanical expansion devices.

Our bellows are designed and manufactured in accordance with the latest editions of EJMA, ASME, DIN, GIS, and IS standards under the supervision of highly qualified engineers and technical specialists, ensuring superior quality, reliability, and performance.

To achieve exceptional flexibility and extended service life, Kanwal Easyflex Bellows are fabricated using premium-grade stainless steel materials such as SS 316, SS 321, and SS 304. These materials maintain their flexibility even under internal pressure conditions, enabling the bellows to perform effectively in demanding industrial environments.

Kanwal Easyflex Bellows have consistently demonstrated outstanding reliability and durability across a wide range of industrial applications, making them a trusted solution for thermal expansion management in piping systems.
