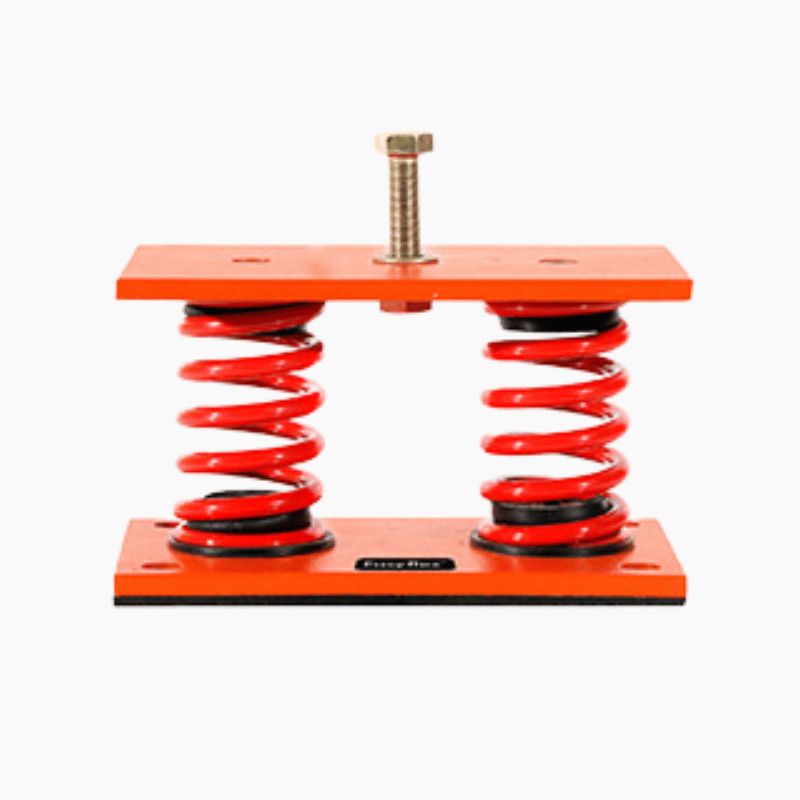

Closed Spring Isolators

This unique range of Closed Spring Isolators uses an integral rubber end fixing of the spring which sets them apart from all other designs. Loose springs and plates are now history and high frequency and noise attenuation is provided with stable mounting.

Originally designed for use for Isolation of heavy equipment the Closed Spring Isolators are now widely used to isolate vibration from every conceivable type of rotating and reciprocating machine. Some examples being big Cooling Towers, Heavy Centrifugal Fans, Heavy Condensing Units, Pumps, Generating Sets, Chillers etc.

These Closed Spring Isolators are cost effective and are a much cheaper option compared to our Spring and Viscous Dampers.

Design Features

• Unique expanding rubber and fixing of spring which also provides high frequency attenuation

• 25mm deflection colour coded springs with 50% overload capacity

• Can be bolted to supporting structure or free standing on 6mm thick ribbed rubber pad

• Fully height adjustable

• Powder Coated Springs & Body

• No snubbing gives maximum efficiency

• Deflection is at rated load with 15% Tolerances
