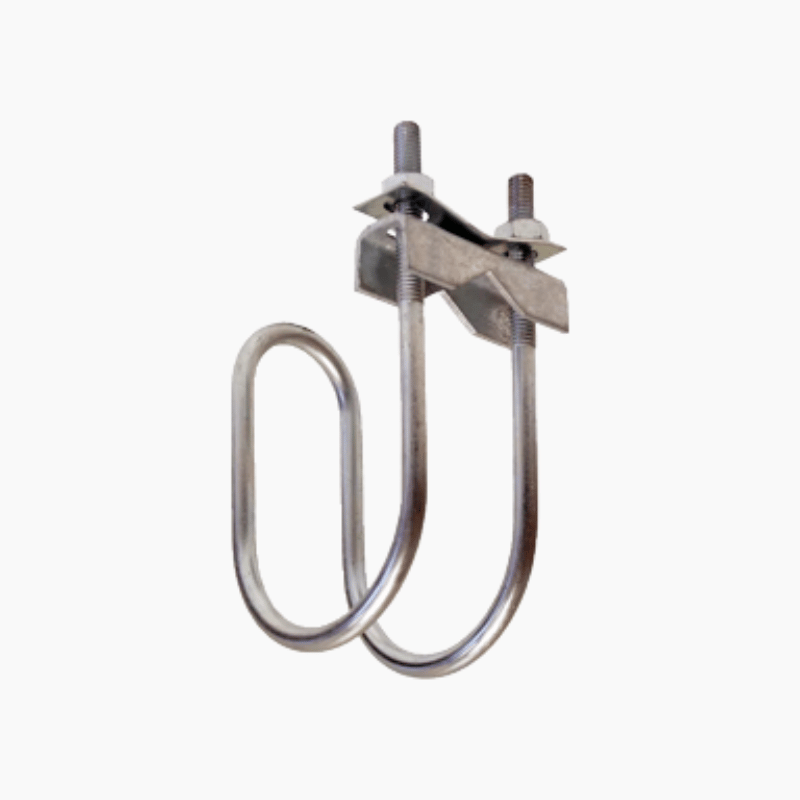

SWA Brace Pipe Attachments for Seismic Support

Designed for bracing pipe against sway and seismic disturbance. The pipe attachment component of a sway brace system used in conjunction with a structural attachment fitting and joined together with a bracing pipe element forming a complete sway brace assembly. Place over the pipe to be braced, adjust brace angle, and insert bracing pipe through opening leaving a minimum of 1" extending from attachment. Brace pipe can be installed on top or bottom of pipe to be braced. Tighten nuts down evenly until hex head breaks off.
