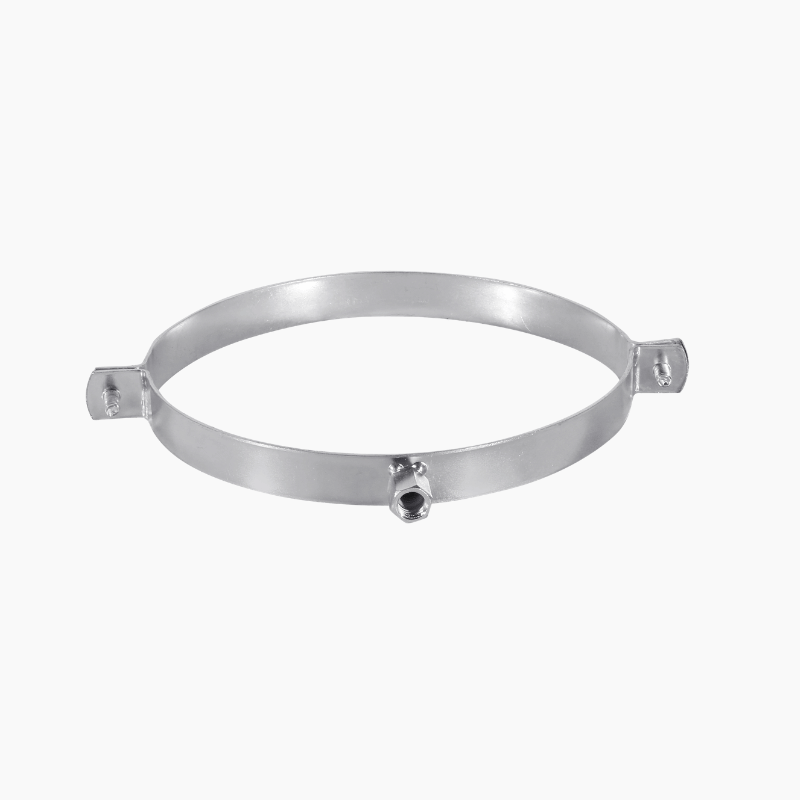

Plain Split Clamps for Pipe Support

Split-ring type pipe clamps with integral fixing nuts. Suitable for ceiling suspension or vertical wall mounting of piping. Designed with a number of features to enhance product performance and reliability

Design Features

• Both halves of the clamp are ribbed, for greater strength.

• Long thread engagement - All Easyflex EFPSC series split clamps are designed with extended thread lengths on the lips of the upper half. This ensures safer installation than clamps offered by others, that have barely one thread engagement also prevents loosening of the clamp’s grip over a period of time due the minor vibration that is generally present in piping systems and causes thread wear.

• Twin-thread Nuts - Clamps for pipe ODs 70mm to 123mm have M8+M10 twin-thread suspension nuts (as shown), for flexibility.

• Side bolts have a slotted-cross head for convenience.

• Custom designed stainless steel (SS 304 / 316) split clamps are available on request.

Material: Steel

Finish: Electro galvanized post manufacture.

Other Options: Epoxy Powder Coated Finish (Sufix ‘PC’) Hot Dip Galvanised Finish (Sufix ‘HDG’)

Compliance - EG to ASTM B633 SC3 BS 1706 FE/ZN 12
