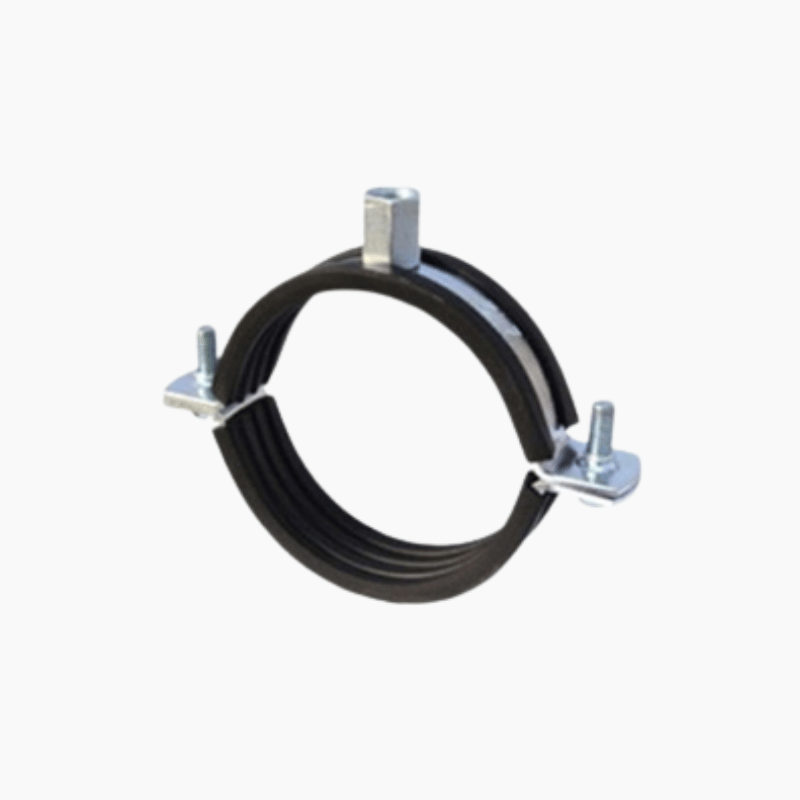

Rubber Lined Split Clamps for Noise Reduction

EPDM lined split-ring type pipe clamps with integral fixing nuts. Suitable for celling suspension or vertical wall mounting of piping. Designed with a number of features which enhance product performance and reliability

Features

• EPDM Lining - Easyflex clamps have high grade EPDM lining, which is significantly superior in terms of product life compared to commercial grade rubber as provided by some others

• Both halves of the clamp are ribbed, for greater strength

• Long thread engagement - All Easyflex EFRLC series split clamps are designed with extended thread lengths on the lips of the upper half. This ensures safer installation than clamps offered by others, that have barely one thread engagement also prevents loosening of the clamp’s grip over a period of time due the minor vibration that is generally present in piping systems and causes thread wear

• Twin-thread Nuts - Clamps for pipe ODs 65mm to 116mm have M8+M10 twin-thread suspension nuts (as shown), for flexibility

• Side bolts have a slotted-cross head for convenience

• Custom designed stainless steel (SS 304 / 316) split clamps are available on request

• Material : Steel, EPDM

• Finish : Electro galvanized post manufacture

• Other Options : Epoxy Powder Coated finish (Suffix ‘PC’), Hot Dip Galvanised finish (Suffix ‘HDG’

• Compliance - EG to ASTM B633 SC3 BS 1706 FE/ZN 12
