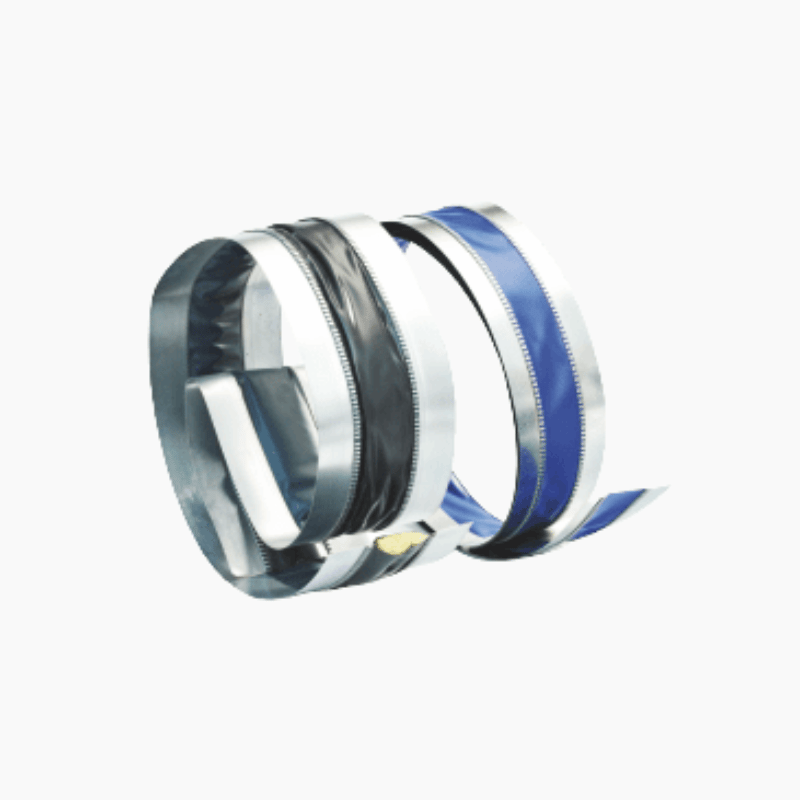

Flexible Duct Connectors for HVAC Vibration Isolation

In order to isolate vibrations caused by air handling units and fans connected to air ducts, it is highly recommended to install a flexible duct connector joint between the outlet of these devices and the airduct.

FABRIC : ROX

• Polyester cloth coated on both sides with PVC

• Colour: Grey

• Weight: 600 gr/sq.m.

• Temperature: -30°C / +70° C

• Flame retardant - VDI 6022 (hygienic)1

• Excellent mechanical resistance

• Steel : Galvanized or stainless steel (304 or 316)

• Thickness : 0.4 mm

FABRIC : Neoprene

• Fiberglass cloth coated on both sides with Polychloroprene (Neoprene)

• Colour: Black

• Weight: 720 gr/sq.m.

• Temperature: -20°C / up to +100° C

• Hardly flammable - UL listed - NFPA 701 / M1 (french standards) / BS476 (British standards)

• Very good mechanical resistance

• Steel : Galvanized or stainless steel (304 or 316)

• Thickness : 0.4 mm

FABRIC : Silicone

• Fiberglass cloth coated on both sides with Silicone

• Colour: Grey

• Weight: 520 gr/sq.m.

• Temperature: -50°C / up to +250° C

• Hardly flammable - UL listed - NFPA 701 / M1 (french standards) / BS476 (British standards)

• Excellent high temperature resistance

• Steel : Galvanized or stainless steel (304 or 316)

• Thickness : 0.4 mm
